How Much Does Drain Installation Cost?

How Much Does Drain Installation Cost? A Comprehensive Guide

The installation of drains is an important factor concerning safety from flooding and the consequent problems of water damage for both commercial and residential properties. The drains will work by completing the system to effectively channel all wastewater away from the source. The cost of drain installation usually depends on several aspects in which you can find variation, such as the type of drainage system being applied, how complex the installation is, labour charges, and the materials used for drainage installation. By and large, Australia falls within the range between $1,000 to $5,000 for drain installation costs. Those are figures that can fluctuate, though, because of location, project size, and other extra necessities like excavation or permits.

Types Of Drain Installation And Their Costs

Stormwater Drainage: The purpose is to channel rainwater runoff away to prevent flooding.

• Installation Process: It includes trenching, putting in a drainage pipe, and connecting it to the stormwater system.


• Cost Estimate: Approximately $1,000-$5,000 depending on the size and location of the property.

French Drain: Good for areas with puddling or very wet lawns.

• Installation Process: Dig a trench, lay pipes with holes, and cover with gravel, allowing water to flow into the pipe.


• Cost Range: Typically $1,000-$4,000, depending on trench length and complexities.

Trench Drains: Used in driveways, patios, garages, and places demanding surface water management.

• Installation Process: A trench is dug, and a channel drain (or grate) is placed to collect and redirect water.


• Cost: $500-$2,500 depending on drainage materials and size.

Subsurface Drains: The drains remove groundwater, thus preventing moisture accumulation that could lead to foundation damage.

• Installation Steps: Excavate a trench with proper slope, lay a perforated pipe wrapped in filter fabric over a gravel base, then backfill with gravel and soil. Connect the pipe to a suitable drainage outlet to direct water away efficiently.


• Installation Cost: $1,500-$5,000, depending on how deep and long the length of a drain system is.

Downspout Extensions: These extensions help to channel water from gutters that are much farther away from the foundation, thus reducing the risk of erosion and pooling.

• Steps: Attach the downspout extension to the end of your existing gutter downspout. Position the extension so it directs water at least 3–4 meters away from your home's foundation.


• Price: Extensions may vary in price from $50-$200, depending on material and installation complexity.

Sewer Line Installation

• Connection to Main Sewer: The work consists of putting in a pipe from the house to the main sewer.


• Cost: $2,000-$15,000, depending on depth, distance from the house, soil, and ground conditions.

Factors Affecting Drain Installation Costs

Drainage installation costs are determined by several factors:

• Drain type and material
  The most contributing factors are the type of drain and the material used. Common materials used for drains include PVC, concrete, and metal. All these have different price tags and complexity when it comes to installation. Normally, PVC is the cheapest and easiest to install, whereas concrete and metal types are more expensive but comparatively stronger.



• Labour cost
  Labour is, however, another cost factor and can vary from one place to another. For instance, though the cost of hiring these workers in different states tends to vary, they also calculate their rates (per hour), depending on the state. Sydney and Melbourne fees, for instance, are much greater than those in most of Canberra and Adelaide. This difference is usually due to the high living costs and demand in the area.



• Length and complexity of the drainage system
  Drainage installation costs directly depend on the complexity and length of the surface drainage system. Many systems with a lot of lengths need more materials, because they also have many branches, curves, or connections to other systems.



• Soil conditions and excavation requirements
  Soil conditions and excavation needs affect costs as well. Rocky or compacted soil is more expensive and harder to dig through, while areas with a high water table may need special drainage.



• Permit and inspection fees
  Fees for inspections and permits are another cost that you may pay for drainage installation. Council governments typically charge $150-$250 for such permits.



• Additional features
  Decorative grates, sediment filters, sump pumps, and backflow preventers might be features that add to the performance and aesthetics of the system but may also cost more. Some of these may be requirements for the layout of the property and water management needs.

The installation cost of drains is affected by the material selected, labour rate, complexity of system design, ground conditions, legal requirements, and system enhancements. Planning with all these variables in mind will provide a sound basis for managing an accurate and realistic project budget.

Cost Breakdown: Material And Labour

Drain Installation Cost Breakdown

Installing a drainage system involves both material and labour costs. Here's a breakdown:

Materials (per meter installed):

Labour:

• Hourly Rate: $50 – $100


• Per Meter Installed: $30 – $70 (depends on soil, depth, and access)

Additional Costs:

• Repairs/Obstacles: $100 – $500+ (tree roots, utilities)


• Landscaping Restoration: $200 – $1,000 (reseeding, replanting, hardscapes)

Total costs vary based on site complexity, depth, and location. A basic residential French drain might cost $25–$60 per meter, all-inclusive. Always consider permits, drainage design fees, and potential machinery rentals when budgeting.

DIY vs. Professional Drain Installation

If you become one of the rare homeowners to install the drain yourself, you could save a few bucks. Tools and materials for laying drains typically cost anywhere from $100 to $300, including piping, fittings, tools for trenching, gravel, and sealants. A person would require moderate to advanced do-it-yourself skills from several hours to a few days, depending on complexity. Considerations here include plumbing layouts, slope measurements, and water usage.

In contrast, hiring a professional means that you will benefit from the expert eye that will plan the installation faster while assuring that the installation complies with local codes and regulations. They have all specialized tools and the experience that allows them to avert costly mistakes or future problems, such as faulty drainage or leaks. For the professional installation, prices usually range from $500 to over $2,000, depending on the scope and location of the project.

While doing it yourself avoids paying for any labour, any mistake made now might become an added expense in the future. Installation done by professionals assures you of a trouble-free service, less work, and endurance. The choice depends on your budget, confidence in your skills, and the complexity of the drain system.

How To Save Money On Drain Installation

• Get Multiple Quotes: To compare prices, services, and materials, solicit estimates from at least three or four local professionals specializing in drainage installations. This way, you assure yourself of competitive pricing. In addition, it allows one to uncover hidden charges or money-saving options.



• Select Materials Wisely: Use long-lasting yet inexpensive materials like PVC instead of cast iron or copper. Consult with your contractor about the materials that will best serve your cost-related quality concerns.



• Plan Ahead: Make a thorough assessment of your drainage needs before the installation. Poor planning may yield an inadequate system, which would cost you to repair or modify.



• Future Repairs: Lastly, consider the drainage layout with the long-term mitigation in view. Do not place pipes close to large trees or places with unstable ground, which can lead to wear and tear over time.



• Consider Other Discounts: Some contractors offer off-season deals or promotion days. Scheduling your work for those days can help offset your labour cost.



• Consider Package Deals: Include drain installation when you're having other work done to improve your negotiating position for getting a better deal overall.



• DIY Where Possible: Whenever applicable, do some work yourself, like trench digging and site cleanup, as this can help you cut down on labour costs.

Thus, a sound strategy and informed choices will allow you to install a durable drainage system without incurring excess costs.

More To Know On Drain Installation

• How long does it take to install drains?


• Simple surface drains: 1 to 2 days


• French drains or trenching: 2 to 5 days


• Large or complex systems: up to 1 to 2 weeks

Is a permit required for drainage work?

Generally yes- if you're digging, disturbing public systems, or changing water flow. Permit requirements will differ with the individual city council. Check with your local building department.

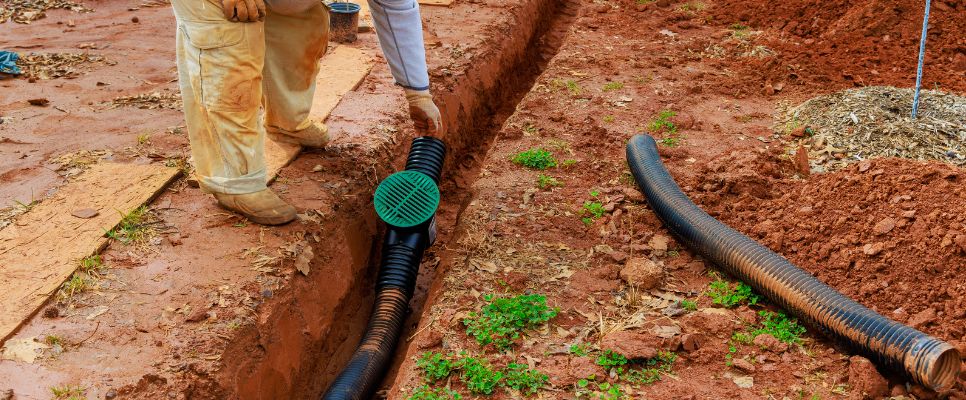

Signs You Need a Drainage System Repair

• Pooling water or soft ground after rain.


• Cracks in the foundation or water in the basement.


• Mold or mildew indoors.


• Water stains on walls or floors.


• Erosion or shifting soil near your home.


• Standing water in your yard or near downspouts.

Can I Install A Drain By Myself?

Little surface drains or do-it-yourself. French drains, for those who are handy and possess tools. Complex systems with deep forge and long sewer lines, intended for pros. Be very careful; a wrongly installed drain can lead to complications and needing rework.

How long do different types of drains last?

• PVC or ABS piping: 50 to 100 years


• Corrugated plastic tubing: 10 to 30 years


• Cast iron: 50 to 100 years (rare in modern residential drainage)


• French drains (gravel & pipe): 30-50 years, if maintained


• Surface drains (grates, catch basins): 20-30 years with care.

Conclusion

Cost determination when installing drains depends on what is the type of drainage, whether it is a property layout, materials, labour costs, and other measurements. Major cost drivers are excavation difficulty, pipe lengths, and the design of the drainage. Drain installations are very significant in long-term efficiency as they prevent expensive costs in future repairs for wrong setups or faulty systems due to poor drainage. Compliance with local codes is ensured in addition to efficiency in performance. Therefore, it is wise to compare free quotes from qualified local drain installers to seek the best value. This would enable every homeowner to make the right choice, quality, durability, or cost-effective drainage solution.
